XD Energy Storage Container System
an advanced, modular energy storage solution designed to enhance grid stability, improve energy efficiency, and integrate renewable energy sources into classical high-voltage grids. It is engineered to store energy from various sources such as solar, wind, or traditional grids, and discharge it during peak demand, aiding in load balancing and reducing energy costs.
Key Features

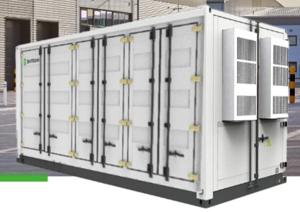

- High Capacity: Available in both 20ft and 40ft containers, with energy capacities ranging from 2MWh to 4.58MWh, depending on the configuration.
- Scalable Design: The system is modular and flexible, allowing for easy scaling to meet the energy demands of small industrial setups to large-scale utility applications.
- Energy Efficiency: With a round-trip efficiency (RTE) of ≥94%, it ensures maximum energy conservation during charging and discharging cycles.
- Temperature Management: Equipped with HVAC systems for effective cooling, ensuring optimal battery performance in various environmental conditions (-30°C to 45°C).
- Fire Safety Measures: The containers include fire detection and suppression systems to mitigate risks associated with battery operation.

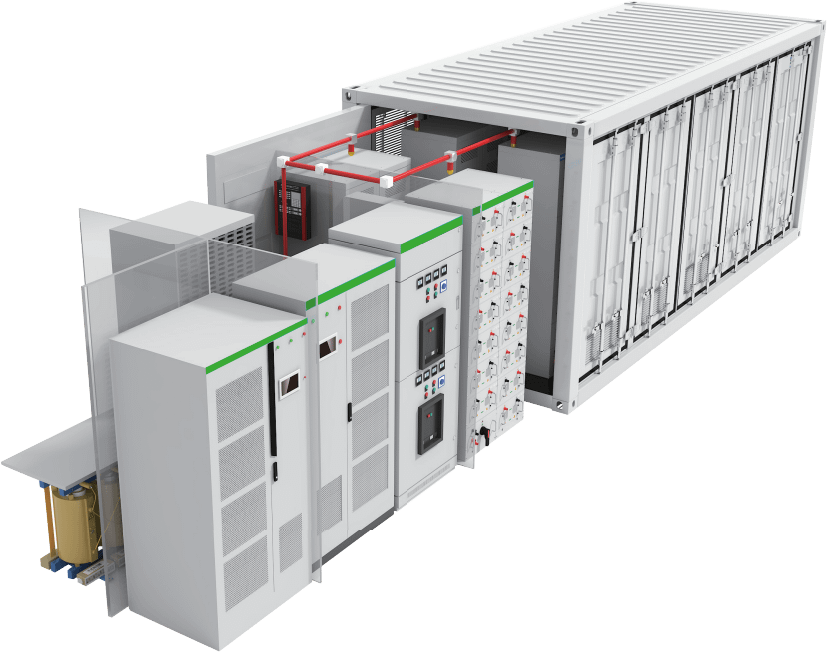

- Power Conversion System (PCS): The PCS converts stored DC power from the batteries into AC power, making it suitable for various applications and enabling grid connectivity.
Technical Specifications
- Voltage Range: 627.2V to 806.4V DC
- AC Voltage: 400V (3-phase connection)
- Battery Life: Designed for 8,000 cycles with a calendar life of 15 years, offering long-term reliability.
- Protection and Safety: Ingress protection rated at IP54, with integrated fire suppression and environmental control systems.
Applications
- Peak Load Shaving: Managing energy demand by storing energy during off-peak hours and discharging during peak times.
- Grid Stabilization: Assisting in balancing supply and demand fluctuations, especially when integrating renewable energy.
- Renewable Energy Integration: Storing excess energy from renewable sources for use during periods of low generation.
This solution is optimized for use in traditional grids, helping transition towards more energy-efficient and sustainable power systems.
