Models: ZF9-363/Y4000-50 and ZF9-363/Y4000-63

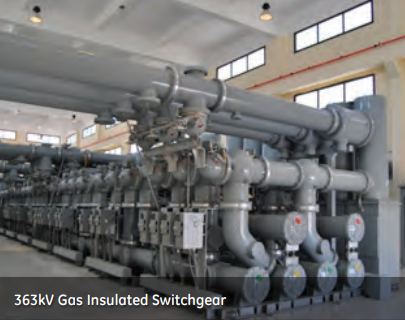

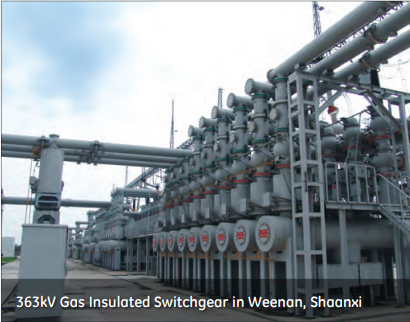

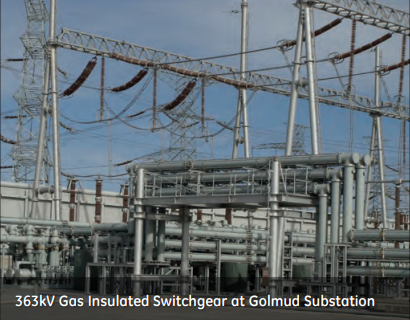

XD is one of the first manufacturers of 363kV GIS in China and continues to be an industry leader in the design, manufacturing, management, and testing of this high-voltage primary equipment. With over 550 installed and operational cells, the ZF9-363 GIS family is designed according to IEC® and ANSI®/IEEE® standards. Utility companies rely on XD to provide advanced parameters, reliable operation, simplified usage, and reduced maintenance.

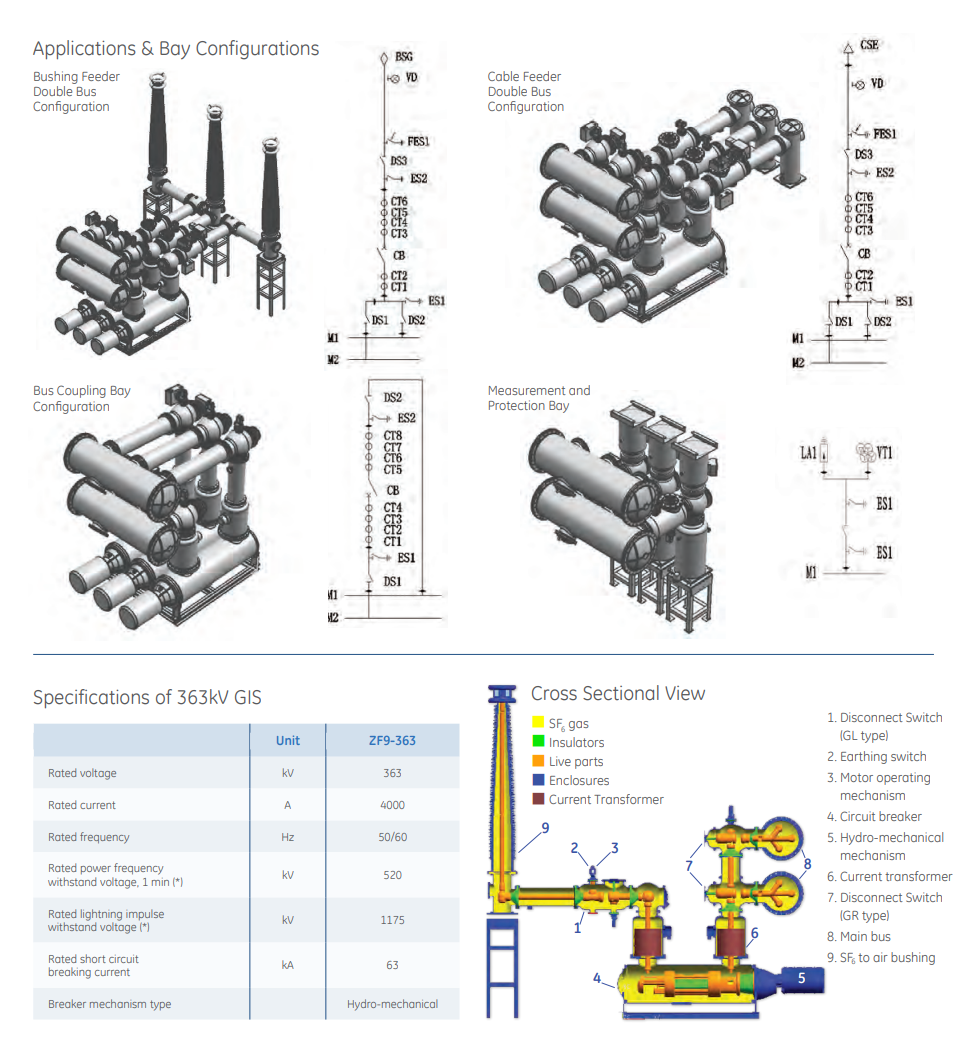

Main Features
- Single-phase or three-phase enclosure
- Dimensions: L x W x H: 7190mm x 2700mm x 7285mm (height with insulator)
- Vertical and single-line circuit breaker
- Circuit breaker with hydromechanical drive
- Disconnectors and earthing switches with motor drive
- Fast earthing switch with motor-spring mechanism
- Exclusive sealing technology (less than 0.5% leakage per year)
- Integrated earthing switches
Advantages
- Ease of Installation: The integration of the local control panel and GIS results in a compact design with completed factory secondary wiring diagrams, reducing on-site installation and commissioning time and costs.
- Standardized Modular Design: XD’s standardized and modular design serves as the foundation for various configurations, allowing maximum application flexibility with the minimum number of components.
- Online Monitoring: XD meets all smart grid requirements. With integrated electronic current transformers (ECT) and electronic voltage measurement, utility companies gain the ability to monitor SF6 gas, partial discharges, and mechanical characteristics online.
